Wednesday, April 29, 2015

Brew Thru #4 - Sink Video, BJCP Comp, Articles on Other Sites

Well, I haven't been doing too well in the blog frequency department have I? But quality over quantity right?


Brewery Updates

I installed the sink and ordered some of the parts for the ventilation.  I went with the Tjernlund M-6 6" fan which can pull a whopping 530 CFM of air and a variable speed control to go with it.  Hoping to get to installing this in the next couple of weeks and ideally brew my first batch on the new system by Memorial day at the latest.


Video of the sink:




BJCP Judging and Test

I judged at the Spirit of Free Beer competition on April 17, and April 18, 2015.  I participated in both the Friday and Saturday judging sessions and there were some really great beers!  I got to judge Belgian Specialty, and American Ale (all American browns) categories on Friday night and the Specialty, and Pilsner categories on Saturday.


I have said it before, but it needs to be repeated: When entering the specialty category only state "special" ingredients that are noticeable.  Often times I will get a beer in the specialty category that has the "kitchen sink" added to it and only one of those ingredients was noticeable compared to the base style.


Judging 40+ beers in two days is a lot of writing, but it is good preparation for the written BJCP Exam I am taking next month!  I am trying to study my butt off to and from work on the commuter train so I can hopefully get a high enough score to become a National judge.


Shegogue Brew Around the Web

I recently had a new article posted over at Homebrewtalk in regards to Recipe Development.  Be sure to let me know if  you develop and brew any "3-2-1" recipes.  Additionally, I wrote a textbook article on beer math which is good for beginning brewers looking to understand how to derive ABV, attenuation and gravities.


Lastly, I had an article about dialing in your system posted over on Homebrew Academy





Monday, April 13, 2015

Basement Induction Brewery Build - Utility Sink

Yesterday I FINALLY got time to tackle installing the utility sink in my basement. I had multiple hours here and there, but yesterday was the first full day I could allocate to this project.  It was a good thing because I needed the whole day!

As part of the brewery build you can check out the other projects:



Utility Sink and Plumbing

My existing plumbing in my basement only had a laundry standpipe and hot/cold water feeds. The laundry standpipe also wasn't up to code as the standpipe was 2" but the p-trap and other piping was 1 1/2". I redid the standpipe and added a new vent connection to meet code - and more importantly not have the laundry siphon out of my the p-trap on the sink

First, I turned off the water. Public Service Announcement - make sure to exercise (turn off and on) your gate stop valves on your water lines a few times a year. A few were REALLY hard to loosen. I then started to cut into the top pipe and my pipe cutter was walking all around on me and almost "threading" the pipe. Not sure if it was just a dull cutting blade or if its done. Regardless, trip 1 to the hardware store was made to get a new pipe cutter. I then got back and cut the pipe, cleaned and soldered in my fittings. I used tin foil held up by a metal thumb tack to prevent from burning my walls and/or house down - worked really well. I could have had some really nice solder joints, but I was scared the little bit of solder didn't make a good seal so I melted on more than I should have (probably totally unnecessary).


new pipe soldered
(Soldered a "T" in the cold and a "T" and 90 in the hot water line)
It is important to have clean pipe when soldering to ensure everything goes smoothly.  Here is a picture of some of my cleaned pipe sections.

cleaned copper pipe
(Cleaned Copper Pipe - Shiny)

Then I added two 45 degree fittings in alternating directions to extend me away from the wall and over the basements cement foundation.

At this point I added on the compression shutoff fittings.

I then began the vent and drain/waste piping. I started with a normal hand saw, moved to a hack saw and then remembered I had a little multi-tool. That thing is a life saver! Towards the end I was getting pretty good at making even cuts. You can barely see the laundry standpipe behind the laundry machine, but its there. I actually had to make trip number 2 to the hardware store (right before Home Depot closed on a Sunday night) to get a slip joint and more 2" pipe for an extender for the standpipe since I had only purchased 2' sections #smallCarProblems.

laundry standpipe venting
(2" Laundry standpipe and 1 1/2" venting installed)
I then measured everything for the sink and glued it up. I had to be more precise here to make sure everything fit.  No pressure right?  It is only 9pm and the hardware store is closed, failure is not an option.

I ended up gluing the stub out and one part of the p-trap, then the sink tub and the other part of the p-trap. Everything fit perfect so I was able to slip the sink and p trap underneath and tighten it down. Phew...did something right.

Laundry sink drain
(Front View of the laundry sink drain piping)
side view laundry sink drain pipe
(Side view of the laundry sink drain piping)
Its like 9:30pm on a Sunday night and I'm thinking to myself, "Awesome I'm done.  Jjust need to connect the supply hoses to the shut-off valves...Oh crap! I didn't buy 2 of the same faucet supply hoses like I thought I did. Hardware store is closed, oh well."

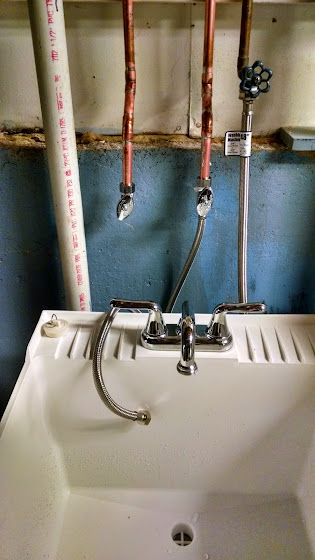

wrong supply hose
(wrong faucet supply hose)


I plan on going to get the correct hose tonight*. I did check it with the one hose and worked and no leaks and the tub drains quickly! Mrs. Shegogue Brew also did some laundry this morning and reported back with no issues. I call this a success!

full view of sink and drain
(full view)


Now I just need to install my venting solution for the boil and I can make some beer!

* Update - Went back to Home Depot on 4/13 and got the correct hose.  No wonder I picked up the wrong one!  These hoses were a mess and they only had 1 left and it was interspersed with the wrong one that I returned.

finished utility sink
(Done! Action Shot)
